Long storage life battery ER10280 lisocl2 battery with wire lithium thionyl chloride battery in stock for military radio
Technical specifications:
| Battery Technology | Lithium thionyl chloride / LiSOCL2 |
| Battery structure | High capacity type |
| Nominal Voltage | 3.6V |
| Nominal Capacity | 500mAh |
| Open circuit voltage | 3.66V (at +20°C) |
| Cut off Voltage | 2.0V |
| Max. Constant Current | 20mA |
| Max. Pulse Current | 65mA |
| Operating Temperature | -55°C~+85°C/-67°F~+185°F |
| Storage Life | ≥10 years |
| Self – Discharge Rate: | <1% per year |
| External Diameter (Max) | 10.5mm |
| External Height (Max) | 28mm |
| Weights | 10g |
| Certification | CE RoHS SGS UN38.3 MSDS |
| Application | Meters, GPS tracking, Medical devices, Military Radio, etc. |
| Sample Lead time | As usual 7-10 working days |
Features
1. High continuous discharge current and current pulses.
2. High energy density, 430Wh/Kg.
3. Open circuit voltage above 3.65V for single cell.
4. Wide range of operating temperature(-55°C~+85°C).
5. Stable voltage and current over 95% of the cell capacity is discharged at high plateau voltage.
6. Long operating time (over 8 years) for continuous low current discharge with high current pulses.

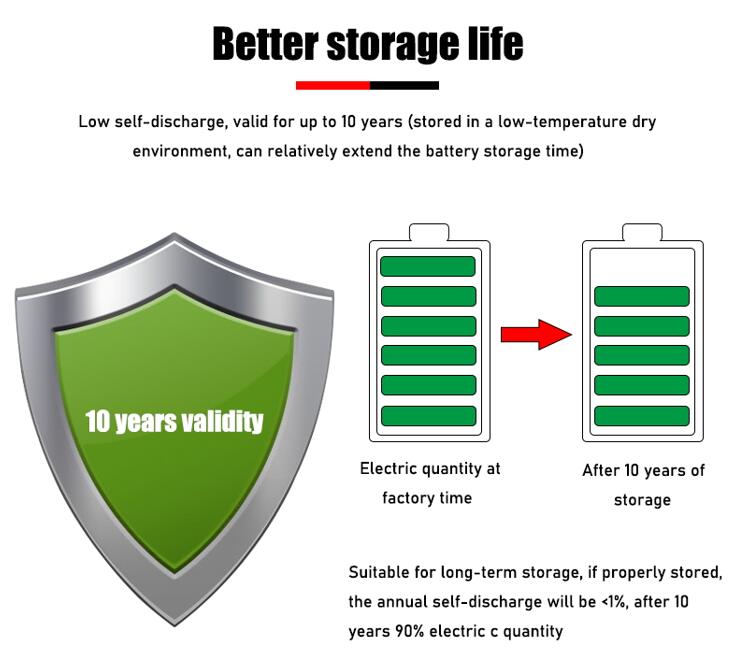

7. Low self-discharge rate (less than 1% per year) and long storage life (over 10 year under normal room temperature).
Model List
| Type | IEC Model | Model | Size(φ) mm×mm | Voltage (V) | Capacity (mAh) |
Maximum continuous current (mA) | Weight(g) |
| Energy Type | 1/2AA | ER14250H | 14.5×25.0 | 3.6 | 1200 | 50 | 11 |
| 2/3AA | ER14335H | 14.5×33.5 | 3.6 | 1600 | 50 | 13 |
| AA | ER14505H | 14.5×50.5 | 3.6 | 2400 | 100 | 19 |
| 2/3A | ER17335H | 17.5×33.5 | 3.6 | 2200 | 100 | 19 |
| | ER17505H | 17.5×50.5 | 3.6 | 3500 | 130 | 26 |
| A | ER18505H | 18.5×50.5 | 3.6 | 3800 | 100 | 32 |

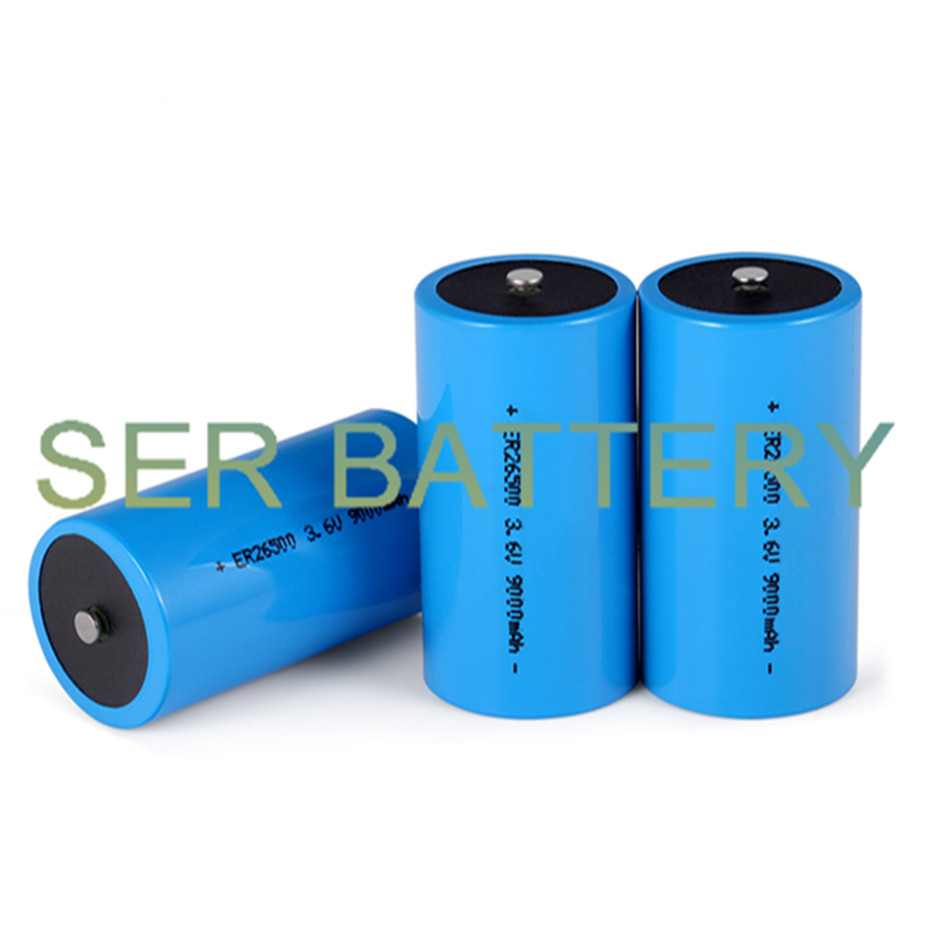

| C | ER26500H | 26.2×50.0 | 3.6 | 9000 | 200 | 55 |
| D | ER34615H | 34.2×61.5 | 3.6 | 19000 | 200 | 107 |
| CC | ER261020 | 26.2×102.0 | 3.6 | 15000 | 200 | 100 |
| DD | ER341245 | 34.2×124.5 | 3.6 | 35000 | 300 | 220 |
| 9V | ERA9V | 49.8×17.8×27.5 | 10.8 | 1200 | 50 | 40 |
| Power Type | 1/2AA | ER14250M | 14.5×25.0 | 3.6 | 1000 | 200 | 11 |
| 2/3AA | ER14335M | 14.5×33.5 | 3.6 | 1300 | 200 | 13 |
| AA | ER14505M | 14.5×50.5 | 3.6 | 2000 | 400 | 19 |
| 2/3A | ER17335M | 17.5×33.5 | 3.6 | 1900 | 400 | 20 |
| | ER17505M | 17.5×50.5 | 3.6 | 3000 | 600 | 30 |
| A | ER18505M | 18.0×50.5 | 3.6 | 3200 | 600 | 32 |
| C | ER26500M | 26.2×50.0 | 3.6 | 6500 | 1000 | 55 |
| D | ER34615M | 34.2×61.5 | 3.6 | 14500 | 2000 | 107 |
Applications
The battery have wide applications:
Utility water/ Gas Meter, smart locks, Automatic Meter Reading; Medical Equipment, CMOS memory backup, Tracking
Systems,Remote Monitory Systems;
Law Enforcement (RFID), Earthquake Detectors, Digital Control Devices, Electronic Toll Tags; Scientific Instruments, Portable
Communication Equipment, Military Radio Stations; and other electric powered devices requiring small size, high power Batteries.
Packaging & Shipping
Packing:
Tray bulk, Blister card, PVC shrink, Gift-Box, Nude packing, OEM packing, etc.
Shipping:
Leadtime is 3-20 working days for normal orders.
Pictures:
Long storage life battery ER10280 lisocl2 battery with wire lithium thionyl chloride battery in stock for military radio
We can add the Pin, wire and connector on the battery according to requirement
Why Choose us?
Company Advantages:
Since 1980, we have been developing new products to meet the needs of different customers and applications.
In addition, battery performance such as safety, energy density, temperature characteristics, discharge plateau and cycle life are always being improved.
In line with our business philosophy of "Quality First", our assembly lines are certified by the Chinese military and ISO 9001.
We also have a fully equipped environmental and reliability testing centre to ensure our products meet military specifications.
High quality batteries:
Our batteries are in enough capacity, and lower in RI. Before shipment, we will 100% inspect and ensure battery quality well approved by our clients.
Better service:
Professional and experienced engineers can provide satisfied perfect solutions to customers. New designs can lead to actual products within 15days.
A professional,dedicated and well known technical& marketing team with the ability to identify,support and serve our customers with diamante service.
We always offer customers with highest quality, reasonable price and intimate after-service to support them on marketing developing. It is our wish to obtain muti-benefit with global users through OEM and ODM business.
Our Certifications:

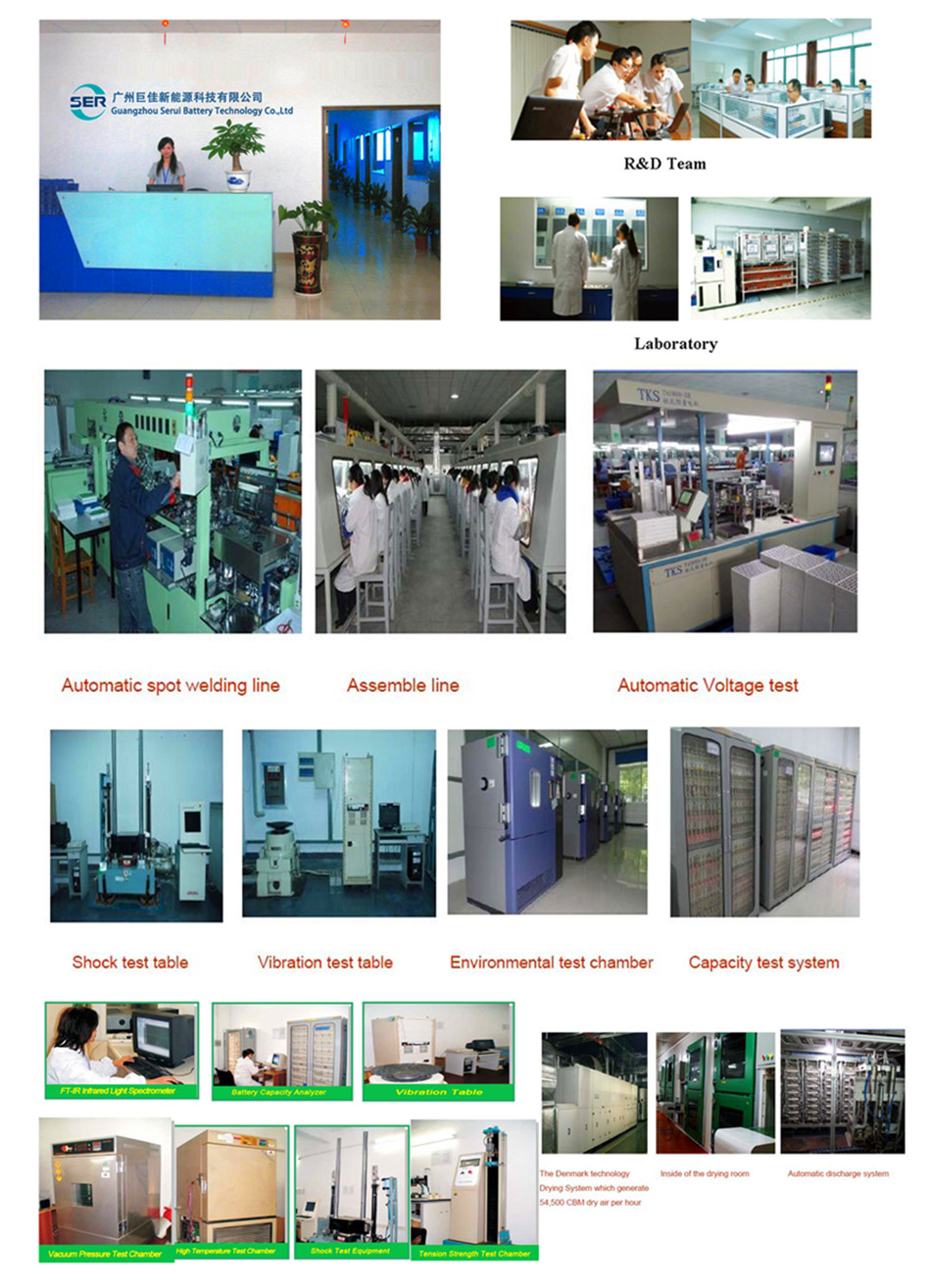

Our Factory
